3D doppler radar tracking

A wide range of three-dimensional (3D) tracking radars for highly precise measurements.

Our 3D tracking radars deliver precise Time-Space Position Information (TSPI) of multiple free-flying objects.

Weibel’s tracking radars are X-band Continuous Wave (CW), Multi-Frequency Continuous Wave (MFCW) and Frequency Modulated Continuous Wave (FMCW) radar systems consisting of state of the art monopulse Doppler radar antennas, high performance pedestals, real-time multi-object tracking processors and state of the art waveform generators, all controlled from the operator console.

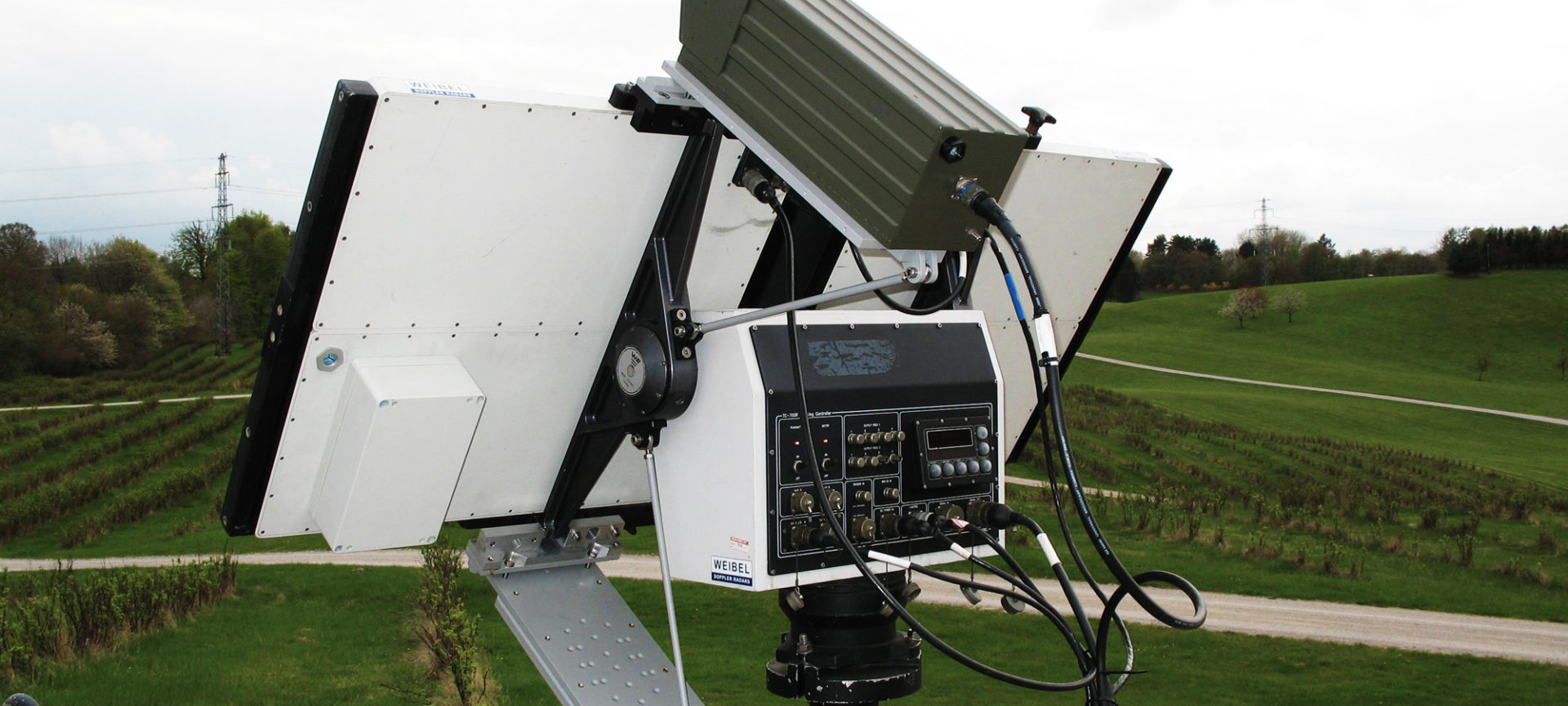

Man-portable, mobile or fixed

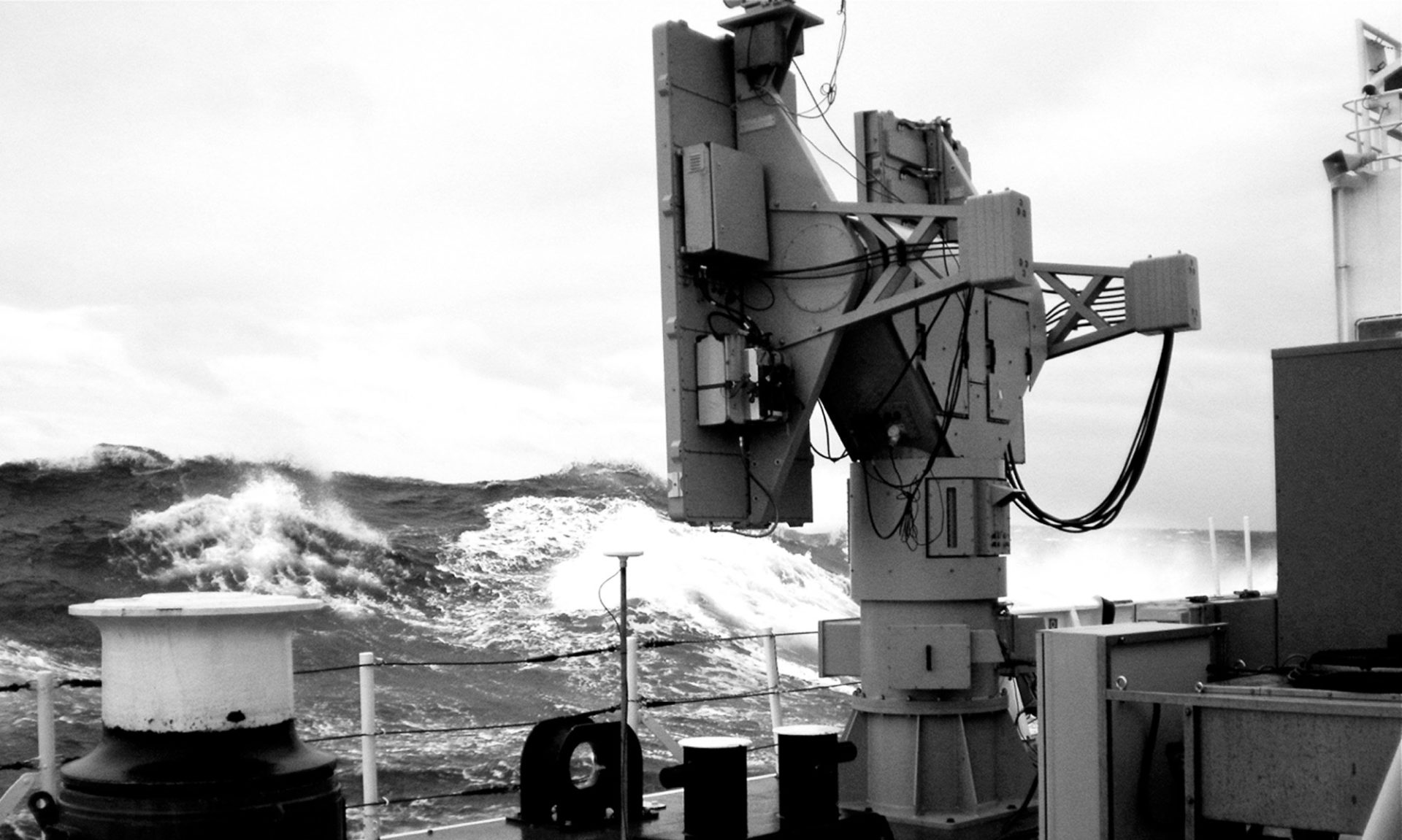

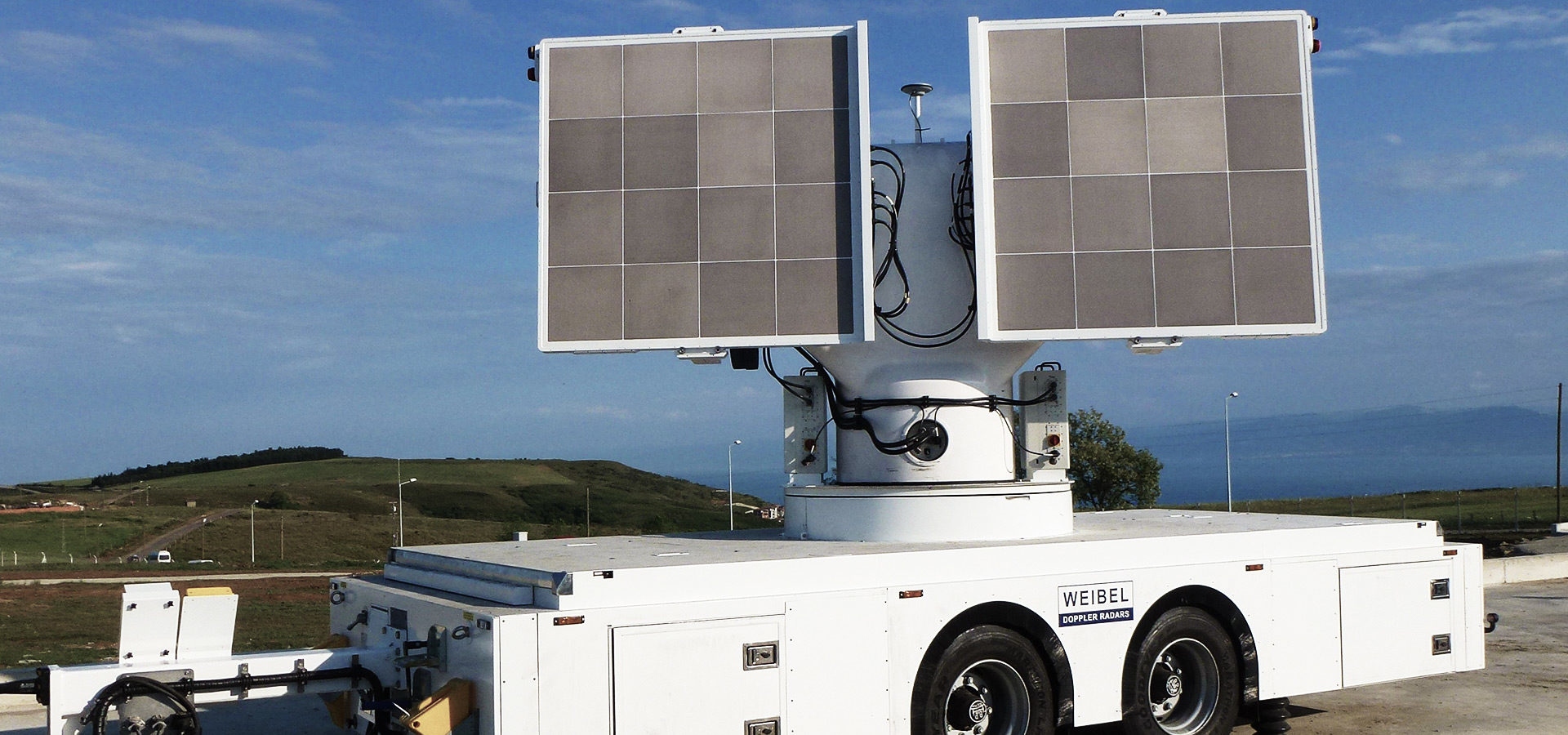

Depending on the specific radar model, Weibel’s product family offers tracking radars from small two-man portable systems to large trailer-, ship- or land-based systems.

Available data
The tracking radar systems measure velocity, range, azimuth angle, elevation angles, debris, spin acceleration, and micro motion of multiple targets in real time; supplying the operator with precise real-time TSPI data of any free-flying objects.

Proven capabilities
The system offers a unique proven capability of accurately tracking moving targets and ammunition, not only for testing purposes, but also for range safety applications.

Typical targets includes:

Small and medium caliber size projectiles
Artillery rounds and mortars
Rocket and missiles
Airplanes, helicopters and fighter jets
Drones
Air-drops
Debris

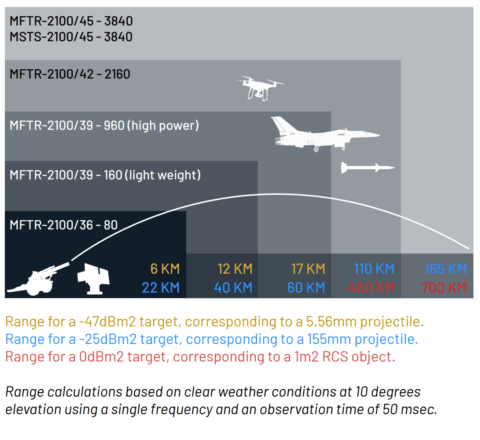

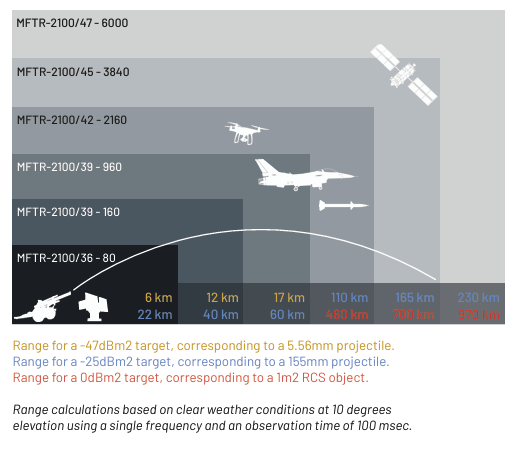

3D tracking radars in multiple sizes

Depending on your needs, we can deliver a range of different sizes that are ideal for test ranges. The smallest 3D tracking radars are portable and can be operated by a single person. Others are trailer-mounted, could be installed in fixed positions or on a ship.
